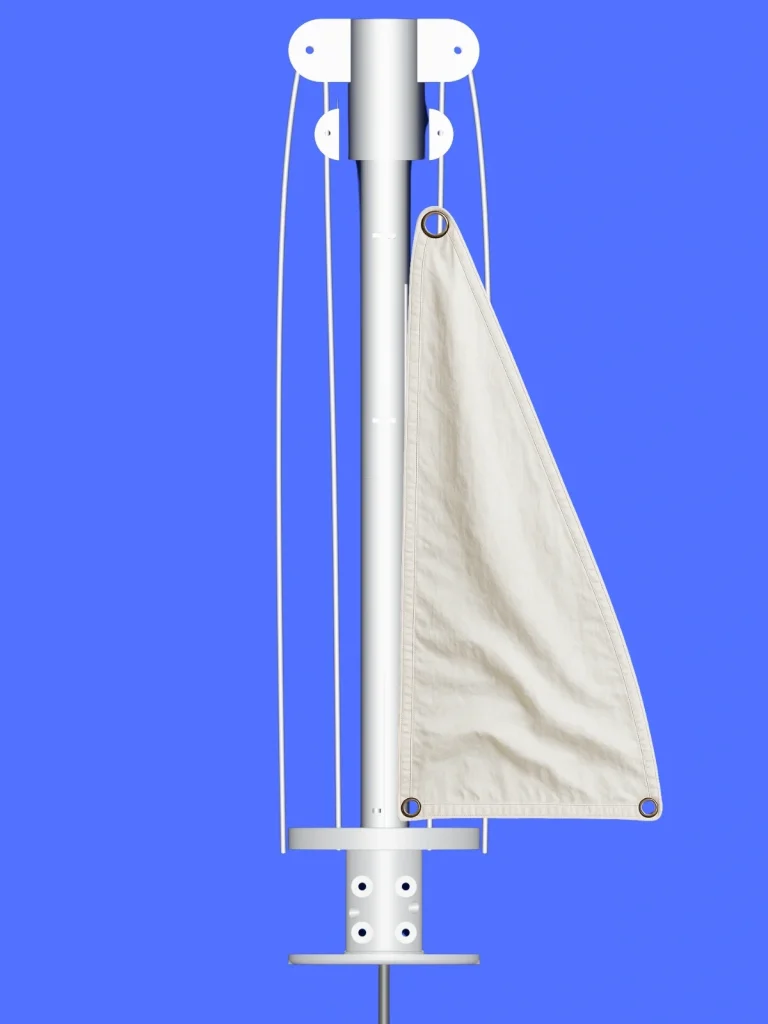

Learn 3D Furler
Free - Standing without the need for Top Mast Connection.
3D Furler's Top, Mid and Bottom Components all interlock around the stay.
Sails are lifted using the self-contained halyards
Twin Grooves For 1 Primary Sail and One Accessory
We guarantee No Halyard Wrap

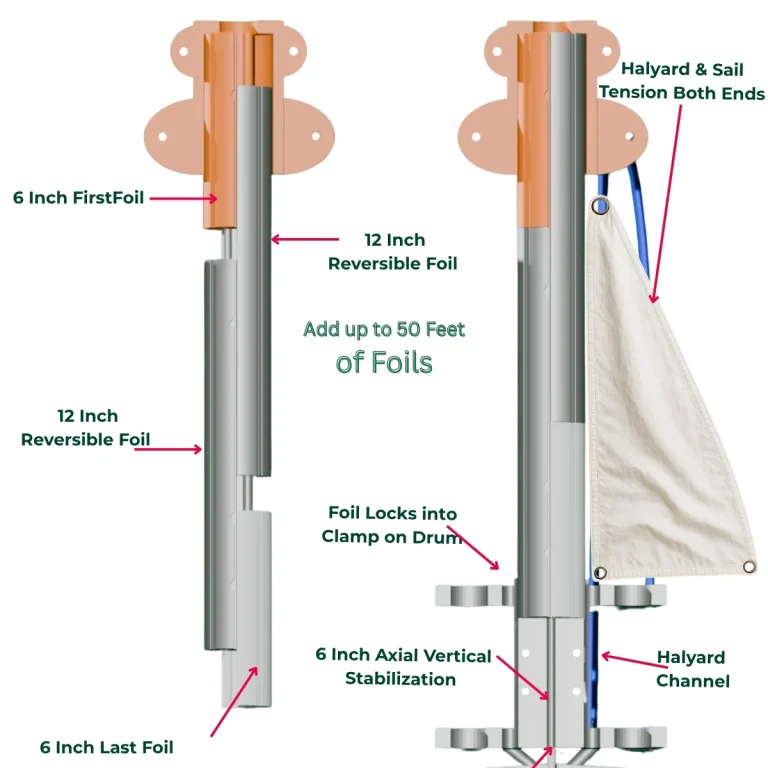

SlideLock Top Assembly
The first part of the Installation is the
Top Assembly with our exclusive Docking Channel.
Sliding over the Stay, the First Foils are added to the Docking Channel.
1/4" line is used for Primary and Accessory Halyards.
12 " Interlocking Foils
SlideLock tm Technology
Using 12" Foils offers torsional strength that far surpasses the natural forces of wind.
Shorter foils offer versatility & accurate sizing.
Each Foil slides up below the first until the system is at Mast Head level.
Axial Bearing Clamp On Drum
Our axially designed rotational system eliminates the need for costly raceways and bearings that can seize or crystallize.
No rigging needs to be removed to install the 3D Furler Drum.
The internally fed control line is angled to allow for smooth spooling.
Visual Access Drum helps to manage runaway control lines on deployment
Short Profiles are easy to manage and makes 3DFurler ideal for Winterizing, Trailered Sailboats and Dinghies.
Self-standing and rotating independently, 3D Furler eliminates any risk of halyard wrap or the need to climb the mast. Ever.
Stay visible and safe from both sea and air with our optional Safety Orange Top Cap.
Keep the crew looking sharp and color-coordinated with an endless variety of color options.
The 3D Furler works in any position, whether on headsails, behind masts, or custom modified on booms.
Production
Every 3DFurler.com component is engineered for Strength and Quality.
We carefully determine the locations of key structural areas that require infill balancing.
Infill density directly impacts part strength, weight, print time, and material use—critical for optimizing performance and cost efficiency.
ASA (Acrylonitrile Styrene Acrylate) is a UV-stable engineering co-polymer offering superior impact resistance, rigidity, and weather durability. Ideal for marine use, it outperforms PVC and resin foils in strength, longevity, and outdoor performance.
