Technical Information

Here you will find technical data for 3DFurler products.

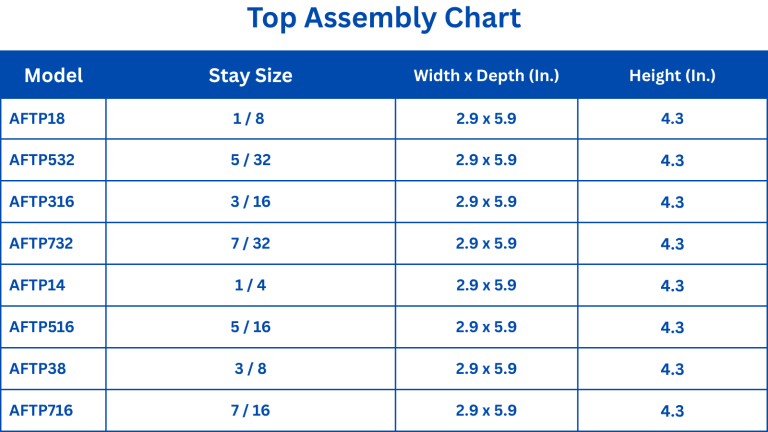

Clamp - On Top Assembly

    Wire Size       Width (in.)    Height (in.)

         1/8 to 7/16       2.9 x 5.9              4.33

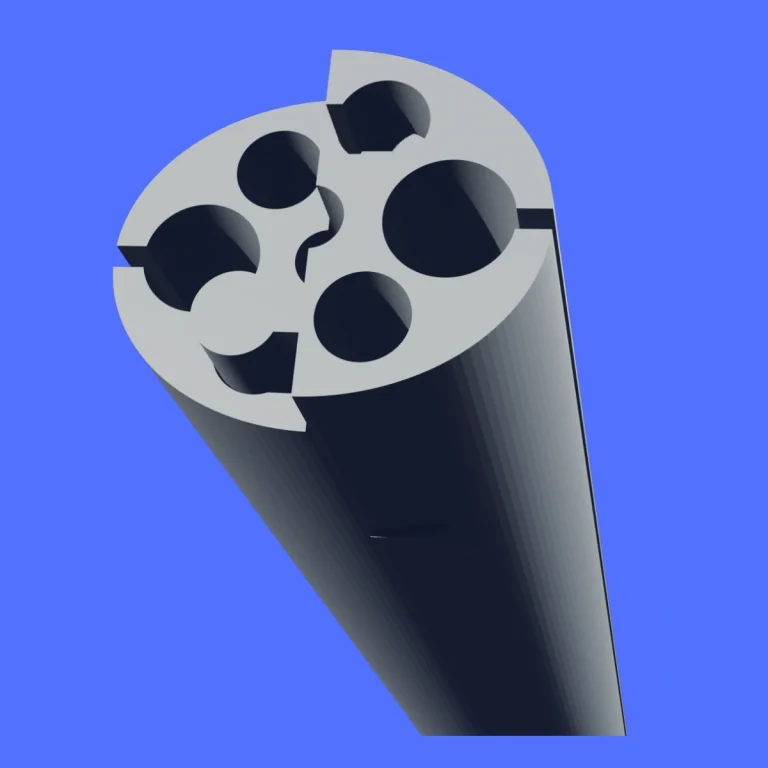

SlideLock Clamp Foils

Wire Size      Width (in.)       Height (in.)

1/8 to 7/16     1.4 x 1.8                    12

Luff Rope (in.)    Luff Gap (in.)  Luff Feeds

       .47                              .08                          2

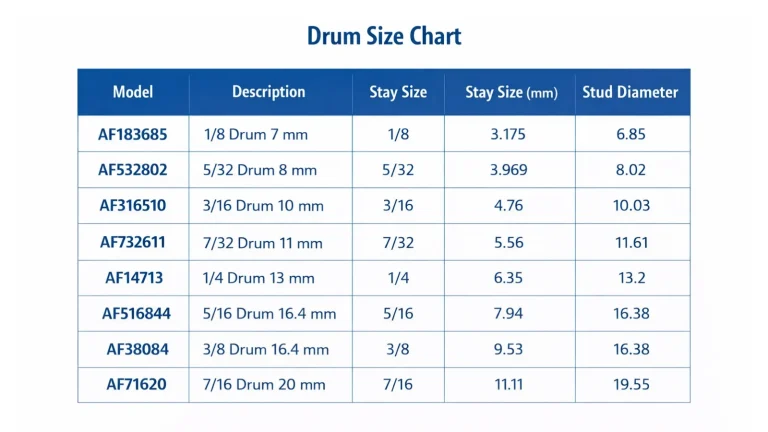

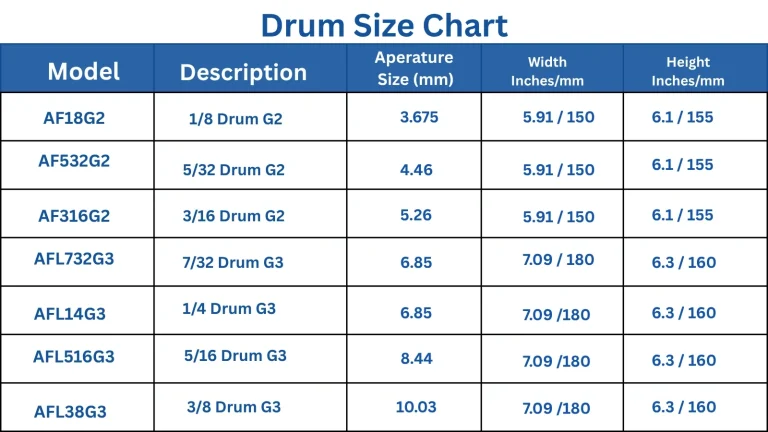

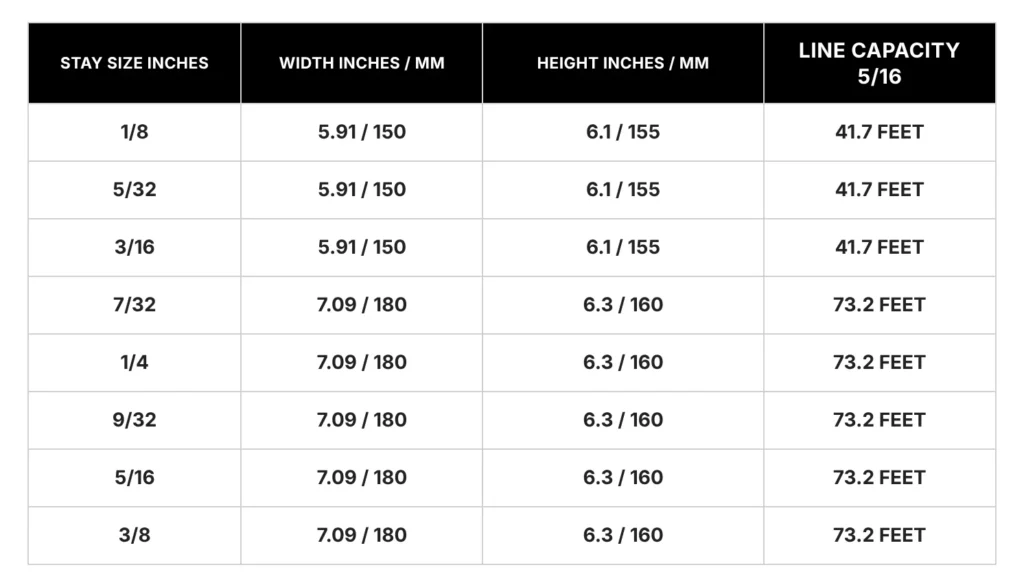

Drum Size Chart 3DFurler

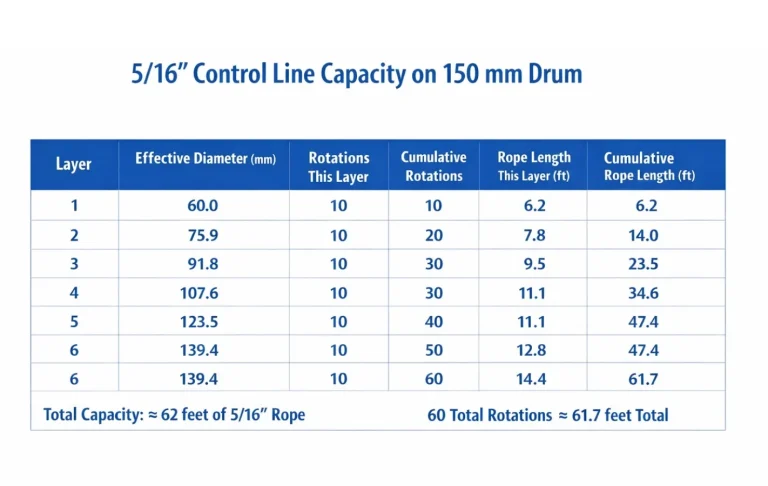

Control Line Capacity 3DFurler

Text or Call us Today!
904-600-4105

Contact Us by Email

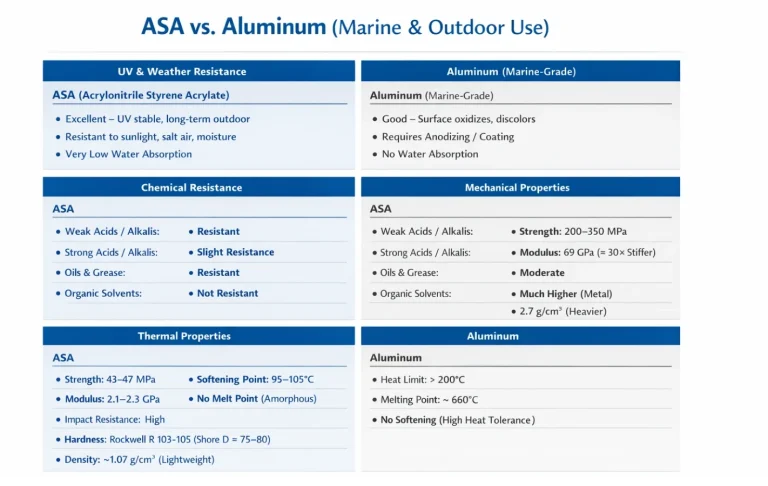

ASA Vs Aluminum Comparison for 3DFurler
